GIS Mapping Support to CGP&Z

DRAFT Prospective Zoning proposals

DRAFT Floating Zoning proposals

Instructions for Using the Online GIS Maps

GIS Defined

WCCOG-UMM GIS partnership

GIS Mapping Projects Supporting CGP&Z

GIS Data Issues and Limitations

DRAFT Prospective Zoning Proposals

The CGP&Z process generated prospective zoning proposals only for Grand Lake Stream Plantation and for Baring Plantation. Maps of those proposals are available in static PDF format (click names in previous sentence to download prints on an 8.5 by 11 sheet) and using online GIS maps (linked below for all UTs and Plantations).

NOTE — Prospective Zoning proposals for Baring changed slightly at the final public meeting. These changes will be posted to the static and online maps after May 13th when the UMM semester ends and we have time to update the maps.

Top

DRAFT Floating Zoning Proposals

There are DRAFT floating zone proposals in Baring Plantation and the townships of Brookton, Cathance, Edmunds, Marion, and Trescott; these are visible in the online maps linked below.

NOTE: As of the 4-25-2017 Final Public Meeting assumption 5 below changed so that the Category #s are the same as those already in use in Aroostook County; however the reduced distances are unique to Washington County. Also the PDFs and online maps will change accordingly. These will be updated when the UMM semester ends May 13th and we have time to make revisions.

Floating zones were created under the following set of assumptions:

  1. Floating Zone scale and use in Washington CountyMap title is DRAFT Floating Zone-Applicable Areas recognizing that the D-RB floating zone does not “land” and become a D-RB until and unless a landowner applies for and obtains a zone change for a particular permit (see handout describing floating zones for more detail on how they work).
  2. Floating zone is called Development – Rural Business (D-RB)
  3. D-RB includes the Development – Recreational Service Business floating zone that was discussed earlier in the process; these businesses would be allowed within Category 1 of the D-RB
  4. D-RB applies on major public roads within each of the 6 Plantation/UTs
  5. D-RB has 3 Use Categories as shown on Table below; they are mapped in the pink bands to depict where each can “land” as follows:
  1. D-RB is limited and areas were removed from the map under the following assumptions:

Top

As with the Draft Prospective Zoning proposals there are several items within the Draft Floating Zone proposals that can be adjusted with public input received to date. Public comment to date has expressed concern about the extent of the areas where the floating zone can “land”. There are ways of limiting how the D-RB can be implemented by:

Links to downloadable PDF (8.5 by 11) pages of the DRAFT Floating Zone-Applicable areas

NOTE — The following maps will be adjusted based on review by LUPC and public input. They will be updated when the UMM semester ends May 13th and we have time to make revisions.

Baring Plantation (detail)

Baring Plantation (whole Plantation)

Brookton Township

Cathance Township

Edmunds Township

Marion Township

Trescott Township



Links to Online GIS Maps for Current, Prospective and Floating Zoning layers:

NOTE — As with the static PDFs the following maps will be adjusted based on review by LUPC and public input. They will be updated when the UMM semester ends May 13th and we have time to make revisions.

Baring Plantation
Brookton Twp
Cathance Twp
Edmunds Twp
Grand Lake Stream
Marion Twp
Trescott Twp

Top

Instructions for Using Online GIS Maps

Follow this link for detailed instructions for using the online Planners Maps. They were prepared for the online Planners maps available for organized towns but are essentially the same as for the Plantations and UTs in Washington County.

Here is QUICK START GUIDE to get you started:

  1. The online maps have a lot of information.  Therefore use the fastest broadband connection you can access. Even so give the layers time to load.
  2. The online maps load to a default extent that shows the entire Plantation or UT with the Legend at the upper left. To get to your point of interest:

GIS Defined

GIS, or Geographical Information System, is a computer mapping system designed to capture, store, manipulate, analyze, manage, and present all types of spatial or geographical data. A geographic information system (GIS) lets us visualize, question, analyze, and interpret data to understand relationships, patterns, and trends. GIS applications are tools that allow users to create interactive queries (user-created searches), analyze spatial information, edit data in maps, and present the results of all these operations on one or more maps. This enables people to more easily see, analyze, and understand patterns and relationships.


WCCOG-UMM GIS partnershipGIS UMM Logo

WCCOG has a 10-year on-going partnership with GIS Service Center Director Dr. Tora Johnson and her students in the GIS Program at the University of Maine at Machias (UMM). Students are working on GIS Degree, Certificate and Associates in Science programs. Their course work directly supports many municipal and regional projects in Washington County including the Community Guided Planning and Zoning process.

Student supported mapping continues a long-standing partnership between WCCOG and the UMM GIS Service Center. It provides students with direct real-world application of their skills which helps them find employment upon graduation. It also provides extraordinary mapping and analysis services to Washington County communities at little or no cost. The courses contributing to the CGP&Z effort include:

The mapping projects completed by UMM students will provide geospatial information to help the Planning Committee in their deliberations. Interim Supervisor of the Washington County UT, Heron Weston, is a graduate of the UMM GIS Certificate Program and is also assisting with GIS mapping.
Top

GIS Mapping Projects Supporting CGP&Z

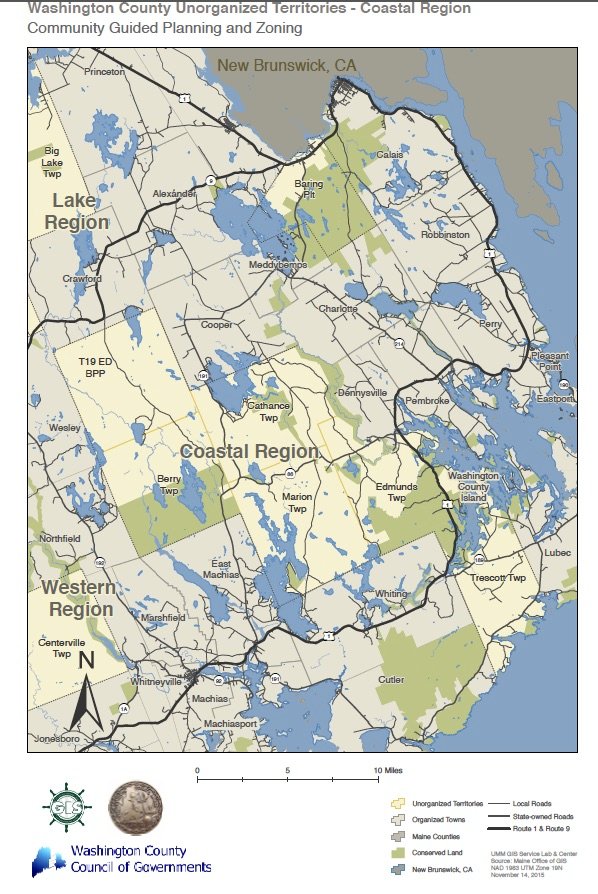

For organizational purposes, the Washington County Unorganized Territories (WCUT) were broken down into the following regions:  Northern, Lakes, Western and Coastal.Coastal Region Base Map

Style guides were created for all mapping projects to ensure all project contributors use a consistent base map. This ensures that final mapping products will have consistent naming and symbols for roads, water bodies, municipal divisions, and ownership; as well as consistent color and shading protocols for areas within the planning region; and a consistent mapping extent for all individual UT townships when users wish to zoom into areas for different purposes. For example when the planning committee wishes to examine different issues in Trescott Township, individual township maps are bookmarked so that for any subject of interest, eg. forestry, fisheries, or recreation, the area shown for Trescott is always the same extent and dimension.

For each region, maps were created in both paper and digital formats. The paper maps for the 4 regions are printed on 11”x17” sheets and those for individual townships are printed on 8.5” by 11”. The digital copies have the same coverage and topics and are in a portable document format (.pdf). All maps were assembled using a common template, designed with input from WCCOG, to insure uniformity.

The GIS mapping projects created in the Fall of 2015 include:


GIS Data Issues and Limitations

In general throughout the WCUT the available data sets can be incomplete, do not align with one another spatially, and are often inconsistent with one another.

Roads — required use of 3 different layers of road information (MEPUB; County Roads; e911) to depict the roads in the WCUT.

Tree Growth Tax Parcels — data available from Maine Revenue Services but delivered in PDF format — had to convert to spreadsheets; several data manipulations to “clean” the data (Washington County on several thousand lines); Town-Parcel-Lot (TPL) field had to be separated and concatanated to link TGT information to the MEGIS parcels data; also parcels not available for the WC Plantations from MEGIS

Conserved lands: includes state lands (parks, public reserve lots and state parkland), federal lands, land trust lands and conservation easements):
The grossly inaccurate lining up of conservation lands with parcels resulted in a choice that the final product is a map of both Conserved Lands layer with the MEGIS parcel layer faintly in the background.
Top
Sustainable Forestry Initiative (SFI) and Forest Stewardship Council (FSC) Certified Lands
Current zoning (ZONES_POLY from MEGIS)
Watersheds and Fisheries

If you are interested in serving on any of the Committees or in receiving updates on the Stakeholders list please contact the Interim Supervisor of the Washington County UT Dean Preston (207-255-8919) or Judy East (207-454-0465)

For more information, contact Judy East at 454-0465
